HYUPSHIN FLANGES

1. Standard: ANSI B16.5, ASME B16.5
2. Type: Plate Flange, SOP Flange (Raised Face)
3. Pressure: Class 300
4. Size: 1/2" - 24", larger Sizes available on request
5. Raw Material: Carbon Steel: ASTM A105, A350
6. Process: Forged or Stamped
7. ASTM raw material specification

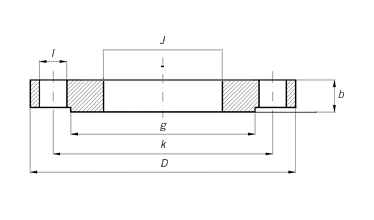

ANSI/ASME/ASA B16.5 300lb/sq.in. Flange Plate RF
ø	D	b	g	m	J	k	Holes	l	Kg.
1/2"	95,6	14,3	34,9	38,1	22,3	66,7	4	15,9	0,700
3/4"	117,5	15,9	42,9	47,6	27,7	82,5	4	19,0	1,100
1"	123,8	17,5	50,8	54,0	34,5	88,9	4	19,0	1,400
1 1/4"	133,3	19,0	63,5	63,5	43,2	98,4	4	19,0	1,800
1 1/2"	155,6	20,6	73,0	69,8	49,5	114,3	4	22,2	2,600
2"	165,1	22,2	92,1	84,1	62,0	127,0	8	19,0	3,400
2 1/2"	190,5	25,4	104,8	100,0	74,7	149,2	8	22,2	4,400
3"	209,5	28,6	127,0	117,5	90,7	168,3	8	22,2	6,100
3 1/2"	228,6	30,2	139,7	133,3	103,4	184,1	8	22,2	7,500
4"	254,0	31,7	157,2	146,0	116,1	200,0	8	22,2	10,100
5"	279,4	34,9	185,7	177,8	143,8	234,9	8	22,2	12,500
6"	317,5	36,5	215,9	206,4	170,7	269,9	12	22,2	14,100
8"	381,0	41,3	269,9	260,3	221,5	330,2	12	25,4	24,800
10"	444,5	47,6	323,8	320,7	276,3	387,3	16	28,6	37,100
12"	520,7	50,8	381,0	374,6	327,1	450,8	16	31,7	50,000
14"	584,2	54,0	412,7	425,4	359,1	514,3	20	31,7	70,000
16"	647,7	57,1	469,9	482,6	410,5	571,5	20	34,9	90,000
18"	711,2	60,3	533,4	533,4	461,8	628,6	24	34,9	112,000
20"	774,7	63,5	584,2	584,2	513,1	685,8	24	34,9	133,000
22"	838,2	66,7	641,2	641,2	564,4	742,9	24	41,3	197,000
24"	914,4	69,8	692,1	701,7	615,9	812,8	24	41,3	208,000

NOTE:
1. Class 300 flanges except Lap Joint will be furnished with 0.06 (1.6mm) raised face, which is included in ‘Thickness’ (C) and ‘Length through Hub’ (Y1), (Y3).
2. For Slip-on, Threaded, Socket Welding and Lap Joint Flanges, the hubs can be shaped either vertical from base to top or tapered within the limits of 7 degrees.
3. Blind Flanges may be made with the same hub as that used for Slip-on Flanges or without hub.
4. The gasket surface and backside (bearing surface for bolting) are made parallel within 1 degree. To accomplish parallelism, spot facing is carried out according to MSS SP-9, without reducing thickness (C).
5. Depth of Socket (D) is covered by ANSI B 16.5 only in sizes through 3 inch, over 3 inch is at the manufacturer’s option.
