HYUPSHIN FLANGES |
1. Standard: EN1092-1
2. Type: Weld Neck Flange, WN Flange (Raised Face)
3. Pressure: PN16
4. Size: DN15 - DN1000, larger Sizes available on request
5.
Raw Material: P245GH, P250GH, P265GH, C22.8, S235JR
6. Process: Forged
7. Basic requirements for Material and Flange |
|
|

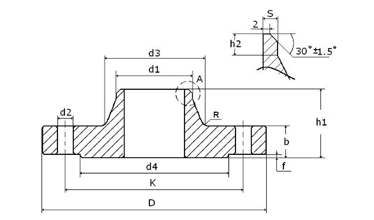

| EN 1092-1 TYPE 11 PN16 WNRF FLANGE |
| Rated Diameter |
Flange |
Neck |
Raised face |
Screws |
Weight
(7,85 Kg/dm3) |
| d1 |
k |
D |
b |
h1 |
d3 |
s |
r |
h2 |
d4 |
f |
d2 |
Thread |
Bolt holes |
Kg |
| 15 |
21,3 |
65 |
95 |
16 |
38 |
32 |
2,00 |
4 |
6 |
45 |
2 |
14 |
M12 |
4 |
0,678 |
| 20 |
26,9 |
75 |
105 |
18 |
40 |
40 |
2,30 |
4 |
6 |
58 |
2 |
14 |
M12 |
4 |
0,768 |
| 25 |
33,7 |
85 |
115 |
18 |
40 |
46 |
2,60 |
4 |
6 |
68 |
2 |
14 |
M12 |
4 |
1,090 |
| 32 |
42,4 |
100 |
140 |
18 |
42 |
56 |
2,60 |
6 |
6 |
78 |
2 |
18 |
M16 |
4 |
1,300 |
| 40 |
48,3 |
110 |
150 |
18 |
45 |
64 |
2,60 |
6 |
7 |
88 |
3 |
18 |
M16 |
4 |
1,910 |
| 50 |
60,3 |
125 |
165 |
18 |
45 |
74 |
2,9 |
6 |
8 |
102 |
3 |
18 |
M16 |
4 |
2,530 |
| 65 |
76,1 |
145 |
185 |
18 |
45 |
92 |
2,9 |
6 |
10 |
122 |
3 |
18 |
M16 |
4 |
3,030 |
| 80 |
88,9 |
160 |
200 |
20 |
50 |
105 |
3,2 |
6 |
10 |
138 |
3 |
18 |
M16 |
8 |
3,920 |
| 100 |
114,3 |
180 |
220 |
20 |
52 |
131 |
3,6 |
8 |
12 |
158 |
3 |
18 |
M16 |
8 |
4,620 |
| 125 |
139,7 |
210 |
250 |
22 |
55 |
156 |
4,0 |
8 |
12 |
188 |
3 |
18 |
M16 |
8 |
6,300 |
| 150 |
168,3 |
240 |
285 |
22 |
55 |
184 |
4,5 |
10 |
12 |
212 |
3 |
22 |
M20 |
8 |
7,810 |
| 200 |
219,1 |
295 |
340 |
24 |
62 |
235 |
6,30 |
10 |
16 |
268 |
3 |
22 |
M20 |
12 |
11,500 |
| 250 |
273,0 |
355 |
405 |
26 |
70 |
292 |
6,30 |
12 |
16 |
320 |
3 |
26 |
M24 |
12 |
16,700 |
| 300 |
323,9 |
410 |
460 |
28 |
78 |
344 |
7,10 |
12 |
16 |
378 |
4 |
26 |
M24 |
12 |
22,100 |
| 350 |
355,6 |
470 |
520 |
30 |
82 |
390 |
8,00 |
12 |
16 |
438 |
4 |
26 |
M24 |
16 |
32,800 |
| 400 |
406,4 |
525 |
580 |
32 |
85 |
445 |
8,00 |
12 |
16 |
490 |
4 |
30 |
M27 |
16 |
41,100 |
| 450 |
457,0 |
585 |
640 |
34 |
83 |
490 |
8,00 |
12 |
16 |
550 |
4 |
30 |
M27 |
20 |
48,500 |
| 500 |
508 |
650 |
715,0 |
36 |
84 |
548 |
8,0 |
12 |
16 |
610 |
4 |
33 |
M30 |
20 |
63,400 |
| 600 |
610 |
770 |
840,0 |
40 |
88 |
670 |
10,0 |
12 |
18 |
725 |
5 |
36 |
M33 |
20 |
96,000 |
| 700 |
711 |
840 |
910,0 |
40 |
104 |
755 |
10,0 |
12 |
18 |
795 |
5 |
36 |
M33 |
24 |
96,500 |
| 800 |
813 |
950 |
1025,0 |
41 |
108 |
855 |
12,5 |
12 |
20 |
900 |
5 |
39 |
M36 |
24 |
122,000 |
| 900 |
914 |
1050 |
1125,0 |
48 |
118 |
955 |
12,5 |
12 |
20 |
1000 |
5 |
39 |
M36 |
28 |
155,000 |
| 1000 |
1016 |
1170 |
1255,0 |
59 |
137 |
1058 |
12,5 |
16 |
22 |
1115 |
5 |
42 |
M39 |
28 |
233,000 |
| 1200 |
1219 |
1390 |
1485,0 |
78 |
160 |
1262 |
14,2 |
16 |
30 |
1330 |
5 |
48 |
M45 |
32 |
390,000 |
| 1400 |
1422 |
1590 |
1685,0 |
84 |
177 |
1465 |
16,0 |
16 |
30 |
1530 |
5 |
48 |
M45 |
36 |
495,000 |
| 1600 |
1626 |
1820 |
1930,0 |
102 |
204 |
1668 |
17,5 |
16 |
35 |
1750 |
5 |
56 |
M52 |
40 |
760,000 |
| 1800 |
1829 |
2020 |
2130,0 |
110 |
218 |
1870 |
20,0 |
16 |
35 |
1950 |
5 |
56 |
M52 |
44 |
929,000 |
| 2000 |
2032 |
2230 |
2345,0 |
124 |
238 |
2072 |
22,0 |
16 |
40 |
2150 |
5 |
62 |
M56 |
48 |
1.185,000 |
|
Tutte le nostre flange rispettano le normative europee EN - italiane UNI - tedesche DIN - americane ANSI. Realizziamo flange piane - libere - per cartelle - a collarino - filettare - cieche I materiali impiegati sono: Acciaio al carbonio = ASTM A105 - C22,8 - RST37,2, Acciaio inossidabile = ASTM A182 F304 - F316L |
| Toutes nos brides respectent les normes européennes EN - italiennes UNI - allemandes DIN - américaines ANSI. Nous réalisons des brides plates - libres - en collet -filetées - pleines.Les matériaux employés sont: Acier au carbone : ASTM A 105 - C22,8 - RST37,2, Acier inoxydable : ASTM A 182 F304 - F316L |
|
Alle unseren Flansche entsprechen den europäischen (EN), italienischen (UNI), deutschen (DIN) und US-amerikanischen (ANSI) Normen. Wir stellen glatte Flansche - lose Flansche -, Vorschweißflansche -Gewindeflansche und Blindflansche her. Wir verwenden folgende Materialien: Kohlenstahl = ASTM A105 - C22,8 - RST37,2, rostfreien Stahl = ASTM A182 F304 - F316L |
|
| |
|
|
|
|
|
|
|
|
|
|
